    EE19 Miniature Current Transformer DW2925 7.20mH

    EE19 Miniature Current Transformer Manufacturer Customized DW2925

    Feature:
    1. Permalloy core,
    2. High precision, good linearity;
    3. Epoxy potting , Safe and reliable
    4. Flame retardant (UL94- V0),
    5. Environmental protection( EU RoHS).
    6. Small size and light weight
    7. Easy to assemble and weld
    Guideline:
    National standard gb 1208-2006;
    Industry Standard jbt 10665-2006.
    Use Temperature:-25℃-+85℃
    Relative humidity:≤95%
    Scope of application:
    Suitable for instrumentation, etc., need to convert large current into
    small current for precise measurement,
    Used for precision measurement or as electrical safety protection.
    Notes:
    If the load connected to the secondary of the transformer exceeds the rated load capacity,
    it may result in reduced accuracy or saturation. If you need to increase the load capacity
    and we can provide customized.

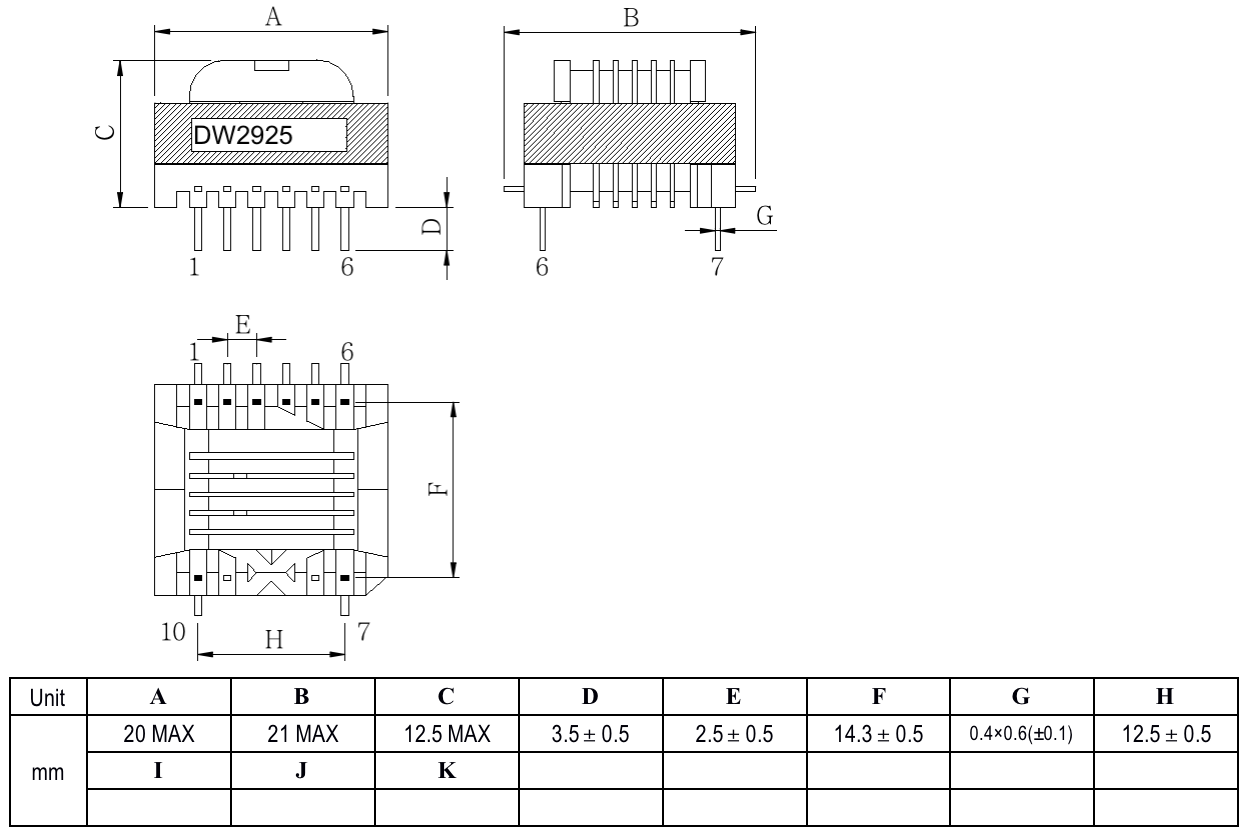

    1. Drawing (Unit: mm)


    2. Construction



    3. Schematic Diagram



    4. Process of winding

    No.STARTENDWIRE(mm)TURNSWINDING

    INSULATION TAPE(mm)

    MARGIN TAPE(mm)

    MATERIALThick/WidthTsPinTopTs
    N17102UEW-F Φ0.06×1P1200Closed//////
    N2612UEW-F, Φ0.20×1P70closed//////
    *(Margin barrier tape layer of the reference, and winding same height as you want)




    5. Electrical Characteristics

    NO.

    ITEM

    TERMINALS

    SPECIFICATIONS

    TOLERANCE

    UNIT

    TESTING CONDITION

    TESTING

    1

    INDUCTANCE

    6~17.20±25%mH1KHz/0.25VCH3252
    7~102.0±25%H1KHz/0.25VCH3252
    2

    LEAKAGE IND

    6~1180MAXuH

    10KHz/0.25V

    (other pins shorted)

    CH3252
    3

    RESISTANCE

    6~12.30MAXΩAT 25℃CH2512
    7~10230MAXΩ
    4HI-POTN1 vs N2AC3000/V50Hz/5mA/3SecCJ2670
    ALL PIN vs COREAC1000/V50Hz/5mA/3Sec
    5

    TURNS RATIO

    ALL winding1200:70±0.2Ts20KHz/1VCH3252
