    ER9.5 High-Frequency Transformer Manufacturer Customized DW3536

    Ask Lasest Price
    Brand Name : Dowis
    Model Number : ER9.5, ER Series
    Certification : CE, UL, RoHs, ISO9001, 16949
    Payment Terms : T/T, L/C
    Delivery Time : 3-4Weeks
    • Product Details
    • Company Profile

    ER9.5 High-Frequency Transformer Manufacturer Customized DW3536

    ER9.5 High-Frequency Transformer Manufacturer Customized DW3536

    Shenzhen Dowis Electronics Co., Ltd. is a professional manufacturer of electronic transformers, inductors, and filters integrating R&D, production, and sales. It is a national high-tech enterprise and has passed the IATF16949:2016 automotive industry quality management system certification, the product has passed the "UL""CQC" and other safety certifications. The products are widely used in communication equipment, new energy vehicles, industrial control equipment, high-power LED drives and other market areas. The industry has high visibility. In addition to the domestic market, but also exported to many countries in Europe and the United States.


    In order to further expand production capacity, it has set up a special test area construction area in zhaoqing YueGui cooperation in 2018 of 14000 square meters of manufacturing center named ZhaoQing Sheng Xiang electronic technology co., Ltd. Its management technical team has rich experience in cooperating with customers from well-known domestic enterprises and overseas. The design of products can fully follow customer’s needs and services with a good quality control system, and it has been recognized by many famous enterprises as the core suppliers. We look forward to cooperating with you.

    1. Drawing (Unit: mm)




    2. Schematic Diagram

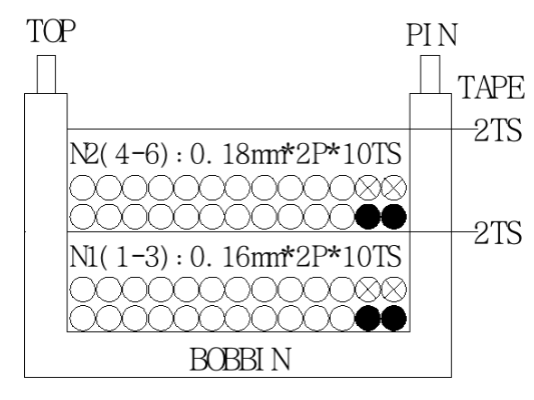

    3. Construction



    4. Process of winding

    序号No.起头
    START
    收尾
    END
    线材
    WIRE(mm)
    圈数
    TURNS
    绕制方式
    WINDING

    绝缘胶带(mm)

    INSULATION TAPE(mm)

    绝缘挡墙(mm)

    MARGIN TAPE(mm)

    套管

    TFL TUBE

    MATERIALThick/WidthTsPin1Pin14Ts
    N1132UEW-B, Φ0.16×2P17Closed-2 layersP.S TAPE0.05/2.52////
    N2462UEW-B, Φ0.18×2P5Closed-2.1 layersP.S TAPE0.05/2.52////
    *挡墙层数参考,与绕线高度平齐为要(Margin barrier tape layer of the reference, and winding same height as you want)




    5. Electrical Characteristics

    序号

    No.

    项目

    ITEM

    测试端

    TERMINALS

    技术要求

    SPECIFICATIONS

    公差

    TOLERANCE

    单位

    UNIT

    测试条件

    TESTING CONDITION

    测试仪器

    TESTING

    1

    电感量

    INDUCTANCE

    1~3225MINuH10KHz/0.1VCH3252
    2

    漏 感

    LEAKAGE IND

    1~30.5MAXuH

    100KHz/0.1V

    Shorted pin4,6

    CH3252
    3

    直流电阻

    RESISTANCE

    1~3100MAXAT 25℃CH2512
    4~6100MAX
    4耐压测试
    HI-POT
    N1 VS N2AC,1500/V50Hz/5mA/1SecCJ2670
    N1&N2 VS COREAC,500/V50Hz/5mA/1Sec
    5

    匝比极性

    TURNS RATIO

    ALL winding10:10±0.2Ts20KHz/5VCH3252
