    PQ2625 High Frequency Transformer Manufacture Customized DW4029

    Ask Lasest Price
    Brand Name : Dowis
    Model Number : PQ2625, PQ series
    Certification : CE, UL, RoHs, ISO9001, 16949
    Payment Terms : T/T, L/C
    Delivery Time : 3-4Weeks
    • Product Details
    • Company Profile

    PQ2625 High Frequency Transformer Manufacture Customized DW4029

    PQ2625 High-Frequency Transformer Manufacturer Customized DW4029

    Shenzhen Dowis Electronics Co., Ltd. is a professional manufacturer of electronic transformers, inductors, and filters integrating R&D, production, and sales. It is a national high-tech enterprise and has passed the IATF16949:2016 automotive industry quality management system certification, the product has passed the "UL""CQC" and other safety certifications. The products are widely used in communication equipment, new energy vehicles, industrial control equipment, high-power LED drives and other market areas. The industry has high visibility. In addition to the domestic market, but also exported to many countries in Europe and the United States.


    In order to further expand production capacity, it has set up a special test area construction area in zhaoqing YueGui cooperation in 2018 of 14000 square meters of manufacturing center named ZhaoQing Sheng Xiang electronic technology co., Ltd. Its management technical team has rich experience in cooperating with customers from well-known domestic enterprises and overseas. The design of products can fully follow customer’s needs and services with a good quality control system, and it has been recognized by many famous enterprises as the core suppliers. We look forward to cooperating with you.

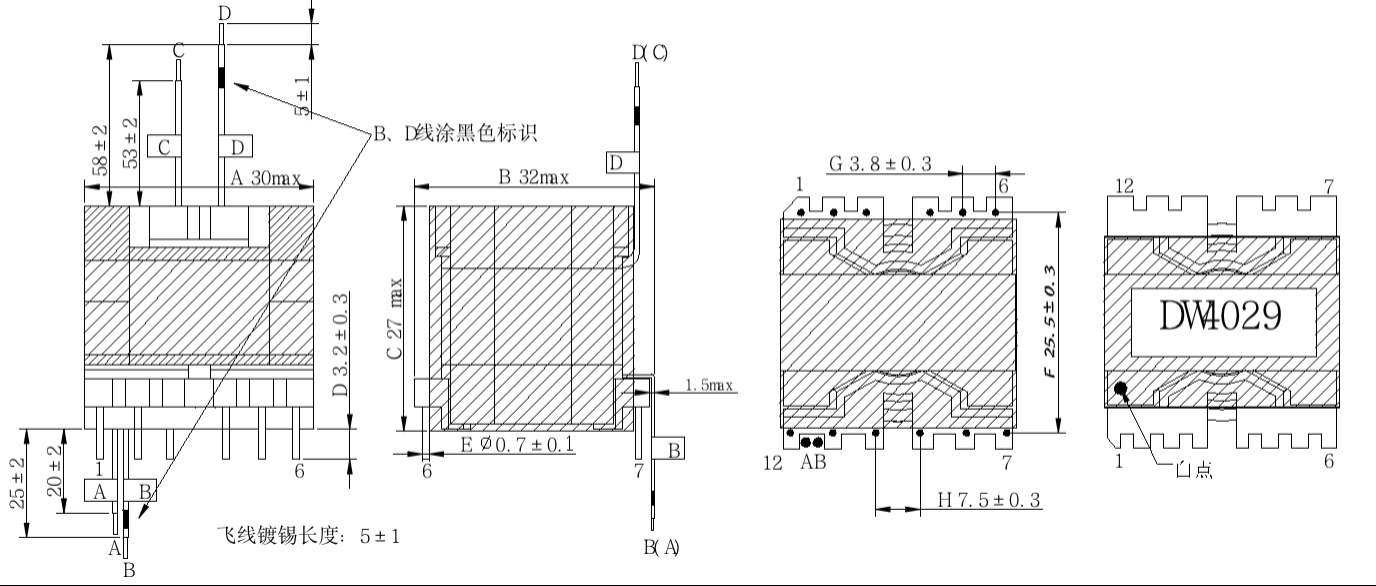

    1. DRAWING (UNIT: MM)





    2. PROCESS OF WINDING

    Winding ItemBarrier TapeFoot PositionWire & DescriptionTSWinding MethodGroove PositionInsulation TapeTubeMethod of Entering AxleDirection of Entering Axle
    StartEndStartEndTape Type (Kapton)TSStartEnd
    N1/(5)ROD

    TIW-3 ¢0.50mm×1P

    18

    Tightly wind a layer,The tail wire is reserved to wind N10


    Between Pin4 & 5


    Top of Pin1-6


    T0.025×14mm



    3.1



    22L×20mm


    /Pin towards rightClockwise
    N2/(9)(7)

    2UEW-F ¢0.50mm×4P

    2

    Three sets of wires are wound together;tightly wind a layer


    Between Pin9 & 10


    Between Pin7 & 8


    T0.025×14mm

    1.1

    15L×15mm


    15L×15mm

    N3/(7)(8)

    2UEW-F ¢0.50mm×4P

    2

    Between Pin7 & 8


    Between Pin8 & 9


    15L×15mm


    15L×15mm

    N4/(C)(D)

    2UEW-F ¢0.30mm×1P

    2

    Top of Pin7-12


    Top of Pin7-12


    26L×242mm (Trapping the whole wire)

    N5/(11)(12)

    2UEW-F ¢0.50mm×2P

    4

    Three sets of wires are wound together;tightly wind a layer


    Between Pin10 & 11


    Between Pin11 & 12


    T0.025×14mm

    3.1

    18L×15mm


    18L×15mm

    N6/(12)(10)

    2UEW-F ¢0.50mm×2P

    4

    Between Pin11 & 12


    Between Pin9 & 10


    18L×15mm


    18L×15mm

    N7/(A)(B)

    2UEW-F ¢0.30mm×1P

    2

    Between Pin11 & 12


    Between Pin11& 12


    26L×200mm(套整条线)

    N8/(1)(2)

    TIW-3 ¢0.20mm×1P

    3

    Two sets of wires are wound together, Sparsely wind a layer


    Between Pin1 & 2


    Between Pin2 & 3


    T0.025×14mm

    1.1

    26L×15mm


    26L×15mm

    N9/(4)(3)

    TIW-3 ¢0.20mm×1P

    1

    Between Pin3 & 4


    Between Pin3 & 4



    26L×15mm


    26L×15mm

    N10/ROD(6)

    TIW-3 ¢0.50mm×1P

    14

    Connect N1 reserved wire tightly wind a layer


    Top of Pin1-6


    Between Pin5 & 6


    T0.025×14mm

    2.5/

    26L×15mm




    3.Electric Performance

    ItemTest TerminalTest Conditionstandard requestEquipment
    Semi-finished goodsManufactured goodsQC Exam
    Inductance Test56100KHz,0.3V559.7~600.3uH551~609uH550~610uHTH1062 or equal
    Leakage Test56100KHz,0.3V5uH MAX5uH MAX5.0uH MAXTH1062 or equal
    Short circus to otherPINTH1062 or equal
    Q Value56100KHz,0.3V150 MIN150 MIN150 MINTH2511 or equal
    Direct Current Resistance12DC 25℃150m Ω max150m Ω max150m Ω max
    4360m Ω max60m Ω max60m Ω max
    56200m Ω max200m Ω max200m Ω max
    786m Ω max6m Ω max6m Ω max
    975m Ω max5m Ω max5m Ω max
    111216m Ω max16m Ω max16m Ω max
    121015m Ω max15m Ω max15m Ω max
    AB80m Ω max80m Ω max80m Ω max
    CD90m Ω max90m Ω max90m Ω max
    Turns TestAll winding20KHz,1V32:2:2:2:4:4:2:3:132:2:2:2:4:4:2:3:132:2:2:2:4:4:2:3:1(±0.2TS)CH3250 or equal
    (±0.2TS)(±0.2TS)
    High-Voltage Insulation TesPrimarySecondaryAC-50Hz-1.0mA3750V,1~2 Sec4200±10V,1~2 Sec3750V, 60 SecCJ2670 or equal
    PrimaryCoreAC-50Hz-1.0mA3750V,1~2 Sec4200±10V,1~2 Sec3750V, 60 Sec
    SecondaryCoreAC-50Hz-1.0mA1500V,1~2 Sec1800±10V,1~2 Sec1500V, 60 Sec
    Pin9+7 to Pin11+12+A+CAC-50Hz-1.0mA500V,1~2 Sec600±10V,1~2 Sec500V, 60 Sec
    Pin11+12 to A+CAC-50Hz-1.0mA500V,1~2 Sec600±10V,1~2 Sec500V, 60 Sec
