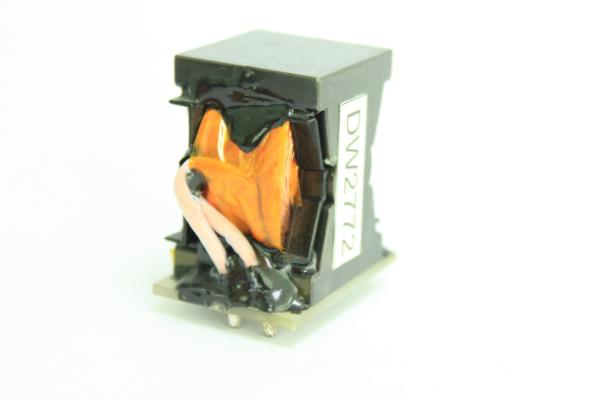

PQ40 DIP Power Inductor Manufacturer Customized DW2772

1, Material: Adopted enameled flat copper magnet wire AIW , resistance temperature class is 220℃.
2, Toroidal flat winding coil , semi-quasi planar structures with low skin effect loss.
3, Comparing with wire, flat coil is lighter, small size, low resistance, high current frequency, low radiation noise.
high current inductors
4, Using good quality, low loss composite material, iron powder core, ferrite make for high current inductors, in same dimension, high current, high frequency of inductance range from 1KHZ~5MHZ, high efficiency and high stability. Q-value runs more stable.
5, Simple structure, stable performance, inside temperature difference in coil is small, thus, good heating dissipation, high magnetic performance.
high current inductors
6, Precise and automotive machine, responsible quality check team, production as per ISO9001 rules, we make sure good quality.
high current inductors
7, Fengxie can make and design as per customer's special demands for high current inductors. according to the different request of coil dimension and core info, we can manufacture different kinds of the inductors.

1. Drawing (Unit: mm)

2. Schematic Diagram



3. Construction

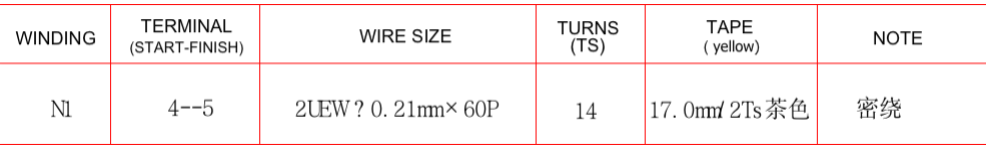

4. Process of Winding

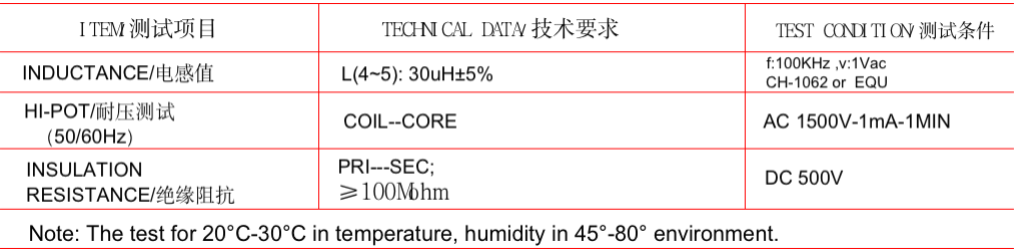

5. Electrical Characteristics
