| Brand Name : | Dowis |
| Model Number : | EFD20, EFD Series |
| Certification : | CE, UL, RoHs, ISO9001, 16949 |
| Payment Terms : | T/T, L/C |
| Delivery Time : | 3-4Weeks |
EFD20 Planar Power Transformer Manufacturer Customized DW6990
EFD20 transformer
High efficiency, high quality materials.
Low working temperature and long service life.
Good insulation and high resistance to electric power.
Good anti-interference performance and high reliability.
Low energy consumption and high dc superposition.

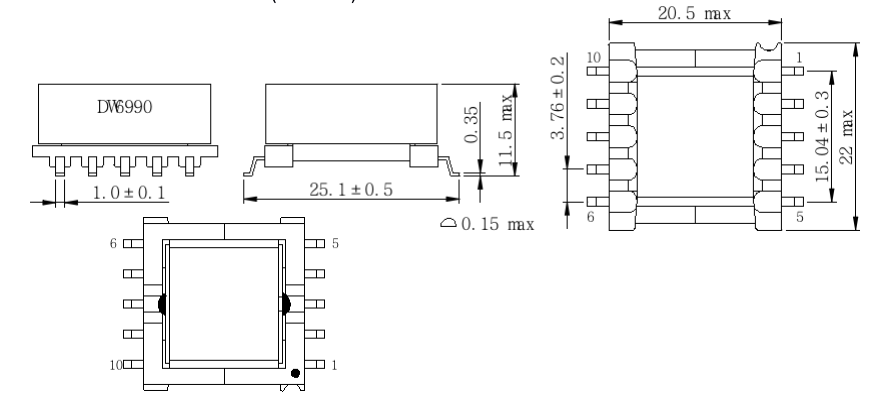

1. Drawing (Unit: mm)

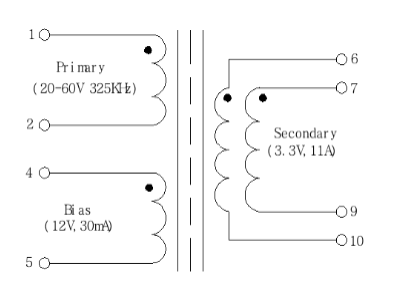

2. Schematic Diagram
3. Process of Winding
| No. | Winding | Terminals | Wire | Remarks | Number of turns | Insulation turns | |
| Start | End | ||||||
| 1 | Primary | 1 | 2 | 1UEWF ∮0.40mm*1 | Tightly wind a layer | 30 | 2 |
| 2 | Second | 6,7 | 9,10 | 1UEWF ∮0.45mm*4 | Tightly wind a layer | 5 | 2 |
| 3 | Bias | 4 | 5 | 1UEWF ∮0.40mm*1 | Tightly wind a layer | 17 | 3 |
4. Electrical Characteristics
| ITEMS | TERMINALS | SPECIFICATIONS | CONDITIONS | APPARATUS |
| Inductance | 1-2 | 120uH±10% | 100KHz,0.1Vrms | HP-4284A |
| Leakage Inductance | 1-2 | 3.0uH MAX (Shorted 4+5+6+7+9+10) | 100KHz,0.1Vrms | HP-4284A |
| Resistance | 1-2 | 150mΩ MAX | DC-25℃ | TH-2512 |
| 4-5 | 110mΩ MAX | |||
| 6,7-9,10 | 7.5mΩ MAX | |||
| Turns ratio | Pri:Sec | 1:0.167 | 20KHz,1Vrms | |
| Pri:Bias | 1:0.57 | |||
| Hi-Pot | Pri&bias to sec | AC 1500Vrms | 5mA,1minute |
