1.1mH-1.2mH 100KHz,1V EE16 HF Transformer DW6922

Features:

1. High quality and Competitive price
2. Good after-sale service
3. High-temperature resistant
4. Supply samples free with the short delivery time
5. Suitable for a wide range of switching power supply/power transformer/ LED driver transformer/current transformer/distribution transformer

1. Drawing (Unit: mm)

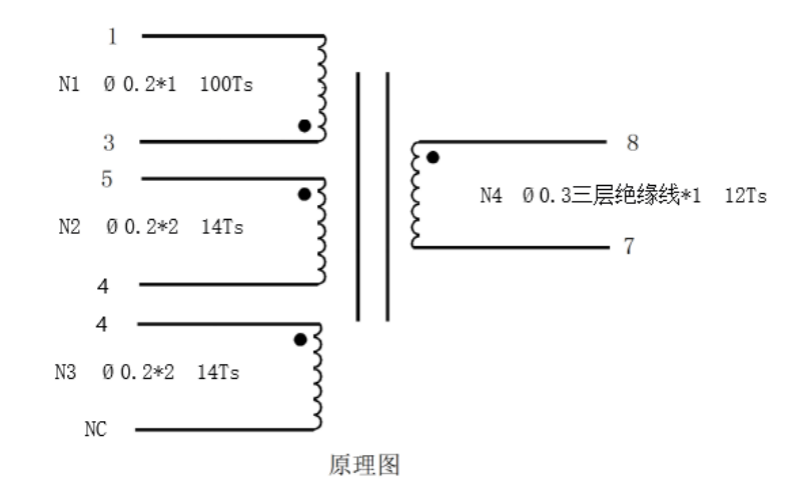

2. Winding Method

3. Winding System Requires

4. Environmental conditions
1. Storage temperature: -40 -- 70℃
2. ambient temperature: -25-55℃
3. working temperature: -25 -- 110℃
4. relative humidity: -5%-95%
5. Long-term durability test.

5. Electrical characteristics

• Inductance value:L_N1=1.1—1.2mH(at:100KHz,1V)；
• leakage inductance(LEAKAGE INDUCTANCE):LL_N1=50µH MAX (at 100KHz,1V,Short circuit other winding).
• The electric strength

N1,N2,N3 ———————N4 @ 5000Vac/1mA/1MIN

N1,N2,N3 ———————Core @ 1500Vac/1mA/1MIN

N4 —————Core @ 3500Vac/1mA/1MIN
