| Brand Name : | Dowis |
| Model Number : | EE25.4, EE series |
| Certification : | CE, UL, RoHs, ISO9001, 16949 |
| Payment Terms : | T/T, L/C |
| Delivery Time : | 3-4Weeks |
EE25.4 High-Frequency Transformer Manufacturer Customized DW3406
Applications:
switching power supplies, chargers, alarm system, TV and CRT
monitor displays, UPS, VCD/DVD players, audio and visual equipment,
OA machines and inverter
Typical product:
PQ: 2020, 2016, 2625, 3230, 3535, 4040 and 5050
EI/EE series: EI, EE-5.0, 8.3, 10, 13, 16, 19, 22, 25, 28, 30, 33,
35, 40, 42, 50, 55 and 60
EF series: EF-4539, 16, 20, 25 and 32
ERL series: ERL-28, 35, 39, 42 and 49
ETD series: ETD-29, 34, 39, 44, 49, 54 and 59
EFD-15, 20, 25 and 30
1. Drawing (Unit: mm)

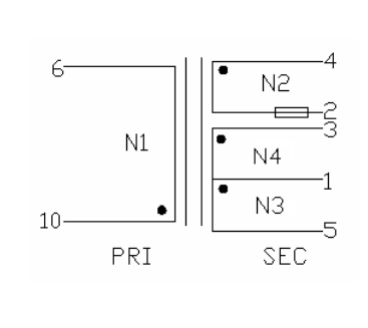

2. CIRCUIT DIAGRAM

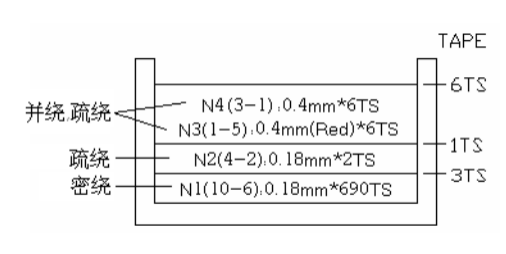

3. CONSTRUCTION DIAGRAM
4. ELECTRICAL CHARACTERISTIC
序号 No. | 项目 ITEM | 测试端 TERMINALS | 技术要求 SPECIFICATIONS | 公差 TOLERANCE | 单位 UNIT | 测试条件 TESTING CONDITION | 测试仪器 TESTING |
| 1 | 电感量 INDUCTANCE | 10~6 | 76.0 | ±10% | mH | 1KHz/0.25V | CH3252 |
| 2 | 漏 感 LEAKAGE IND | ||||||
| 3 | 直流电阻 RESISTANCE | 10~6 | 21.0 | MAX | Ω | AT 25℃ | CH2512 |
| 3~1 | 65 | MAX | mΩ | ||||
| 1~5 | 65 | MAX | mΩ | ||||
| 4~2 | 140 | MAX | mΩ | ||||
| 4 | 耐压测试 HI-POT | PRI VS SEC | AC,500 | / | V | 50Hz/5mA/2Sec | CJ2670 |
| PRI,SEC VS Core | AC,500 | / | V | 50Hz/5mA/2Sec | |||
| 5 | 匝比极性 TURNS RATIO | ALL winding | 690:2:6:6 | ±0.2 | Ts | 20KHz/5V | CH3252 |
5. WINDING SPECIFICATION
| 序号No. | 起头 START | 收尾 END | 线材 WIRE(mm) | 圈数 TURNS | 绕制方式 WINDING | 绝缘胶带(mm) INSULATION TAPE(mm) | 绝缘挡墙(mm) MARGIN TAPE(mm) | 套管 TFL TUBE | ||||
| MATERIAL | Thick/Width | Ts | Pin1 | Pin6 | Ts | |||||||
| N1 | 10 | 6 | 2UEW-B, Φ0.18×1P | 690 | Closed | P.S TAPE | 0.05/11.0 | 3 | / | / | / | / |
| N2 | 4 | 2 | 2UEW-B, Φ0.18×1P | 2 | Spaced -1 layers | P.S TAPE | 0.05/11.0 | 1 | / | / | / | 30L×20mm |
| N3 | 1 | 5 | 2UEW-B, Φ0.40×1P(RED) | 6 | 2wire in hand Spaced-1 layer | P.S TAPE | 0.05/11.0 | 6 | / | / | / | / |
| N4 | 3 | 1 | 2UEW-B, Φ0.40×1P | 6 | ||||||||
| *挡墙层数参考,与绕线高度平齐为要(Margin barrier tape layer of the reference, and winding same height as you want) | ||||||||||||
