PQ2620 PQ Type High-Frequency Transformer Electronic Components Manufacture Customized DW4306

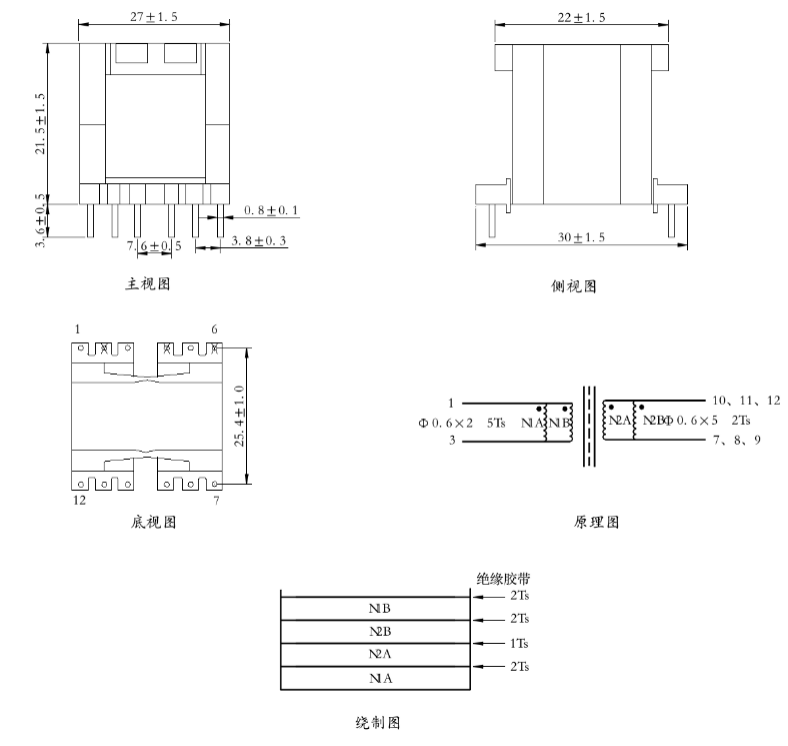

1. Drawing (Unit: mm)

2. Environmental Conditions

• Storage Temperature: -40--70˚C；
• Enviornmental Temperature: 65˚C MAX;
• Operating Temperature: 110˚C MAX;
• Relative Humidity: 20%-90%;
• Long Term Durability Test.



3. Electrical Specification

• Inductance Value:L_N1=120—180µH(at:1KHz,0.3V)；
• Leakage Inductance(LEAKAGE INDUCTANCE):LL_N1≤5µH(at:1KHz,0.3V),Short circuit other winding；
• Dielectric Strength: N1A,N1B————————N2A,N2B @ 500Vdc/1mA/1Min
  N1A,N1B————————Core @ 500Vdc/1mA/1Min
  N2A,N2B————————Core @ 500Vdc/1mA/1Min

• Direct Resistance of Winding:25℃

  N1:≤13mΩ N2:≤5.5mΩ
