PQ35 DIP Power Inductor Manufacturer Customized DW5338
Specifications:
1. The product contain no lead and also support lead-free.
2. This type is the best for energy-saving in the low DC
resistance.
3. Lead free RoHS compliant
4. High power, low distortion.
5. Low distortion at the time large output by high DC current.
6. Adopts the high quality and imported copper wire, the copper
wire could endure high temperature.
1. Drawing (Unit: mm)
2. Schematic Diagram

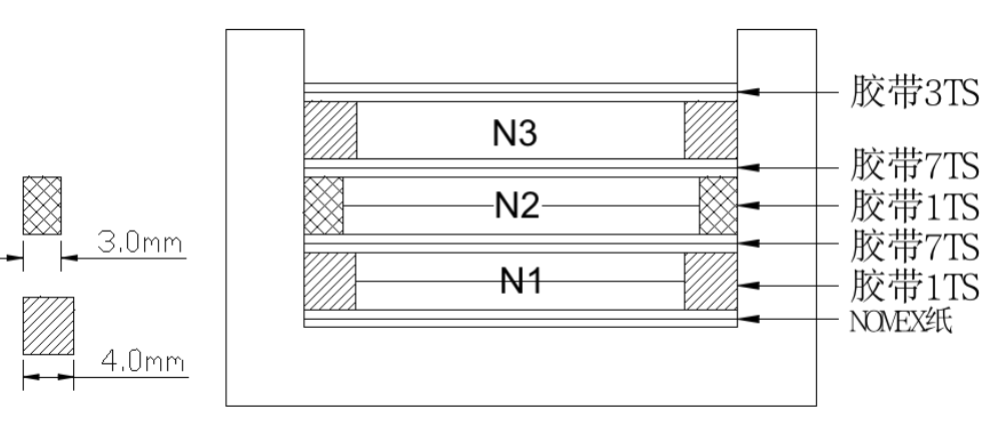

3. Construction
4. Process of Winding
| Winding | Start | End | Wire diameter | TS | Method of Winding | Insulation Tape |
| N1 | 1(5) | S | Φ0.06mm*320P*3 ply | 5 | Wind equally | 7 layers, 0.04mm tape |
| N2 | 3(7) | 4(8) | Φ0.06mm*110P*2 ply | 37 | Wind equally | 7 layers, 0.04mm tape |
| N3 | S | 2(6) | Φ0.06mm*320P*3 ply | 3 | Wind equally | 3 layers, 0.04mm tape |
5. Electrical Characteristics
| NO. | Item | Test Terminal | Test Value | Test Condition | Test Equipment |
| 1 | Inductance Value | L(1-2) | 15uH±5% | 100KHz 1.0V SER 25°C | LCR2816B |
| 2 | Leakage Value | LK(1-2) | 0.6uH MAX (other pins short circuits) | 100KHz 1.0V | |
| 3 | Resistance Strength | Primary to Secondary | 3750VAC | 1mA, 60Sec. | CJ2670 |
| Coil to Core | 2500VAC | 1mA, 60Sec. | |||
| 4 | Insulation Resistance | Coil to Core | 100Mohm MIN | DC500V | MF2511 |
| Coil to Coil |
