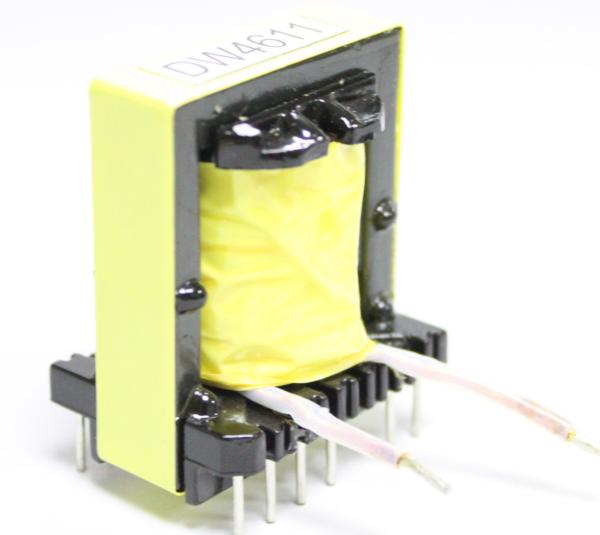

ER3542 DIP Power Inductor Manufacturer Customized DW4611

The main products are: all kinds of high frequency transformer (including transformer, switch power supply transformer and inverter converter network communication, patch type transformer, power adapter, transformers, driver transformers, matching transformers, voltage regulator power transformers, audio transformers, pulse transformers), filters, inductors, choke coils, autotransformer auto - transformers, audio transformers, low frequency transformer, high frequency transformer; Power transformer, aluminum wire transformer,PCB transformer, filling and sealing transformer; Step-up transformer, insulation withstand voltage tester AC25V/ 6.0kv; High voltage transformer; Control transformer, electronic transformer, wiring transformer; AHF power transformer; SMD transformer; Linear power transformer; Sealed transformer; R-type transformer; Inductance type (amorphous inductance, ferro-si-al inductance, mutual inductor); UV special transformer.

1. Drawing (Unit: mm)

2. Environmental Conditions

• Storage Temperature: -40--85˚C；
• Environmental Temperature: -40--85˚C;
• Operating Temperature: 130˚C MAX;
• Relative Humidity: 5%-95%;
• Long Term Durability Test.




3. Electrical Specification
1). Inductance Value: L_N1=27—32µH(at:1KHz,0.3V)

2). Q Value: N₁＞100(at:100KHz,0.3V)

3). The Electric Strength:

N1—————Core @ 1500Vac/1mA/1 Min

4).Winding Resistance(25℃):

N1:≤68mΩ

Shenzhen Dowis Electronics Co., Ltd. is a professional manufacturer of electronic transformers, inductors, and filters integrating R&D, production, and sales. It is a national high-tech enterprise and has passed the IATF16949:2016 automotive industry quality management system certification, the product has passed the "UL""CQC" and other safety certifications. The products are widely used in communication equipment, new energy vehicles, industrial control equipment, high-power LED drives and other market areas. The industry has high visibility. In addition to the domestic market, but also exported to many countries in Europe and the United States.
