    RM10 Shielded SMD Power Inductors 95.5uH To 104.5uH

    RM10 Shielded SMD Power Inductors Manufacturer Customized DW4884

    Features:
    ▪Integrally molded power inductor using a metallic magnetic material.Magnetic shield type and low noise
    ▪It achieve large current,low Rdc,and compactness
    ▪Good performance in high-temperature environments with good DC superimposition characteristics
    ▪No Halogen,RoHS compliant

    Application:
    Power supply around the PC,servers,communication devices,automotive electronics,compact power supply modules,others.

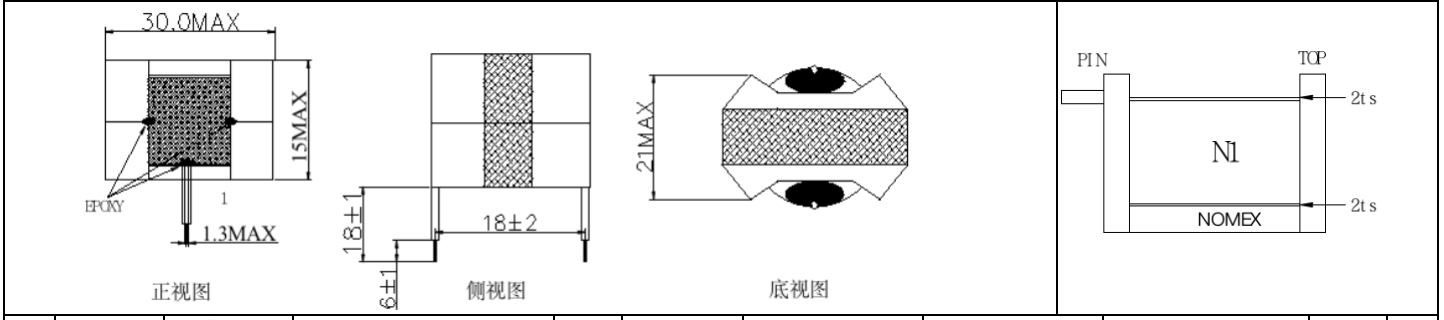

    1. Drawing (Unit: mm)



    2. Process of winding

    WindingMargin barrierPin positionWire & descriptionTSMethod of windingGroove positionInsulation tapeTubeMethod of entering axleDirection of axle
    TOPPIN topStartEndStartEndTape typeTSStartEnd
    *bobbin less winding, the central column is 1.1TS wrapped in Nome paper,then fix with 2 TS tape
    N1(1)(2)

    2UEW-F,φ0.10mm×35 bars

    Silk covered wire

    26.5Tightly wind 4 layers//0.025×8.5mm217L×25mm17L×25mmPin towards rightfront



    3. Electrical Characteristics

    ItemTest TerminalTest ConditionStandard RequirementEquipment
    Semi-finished goodsManufactured GoodsQC Exam
    Inductance Test1210KHz,0.3V97uH--103uH95.5uH---104.5uH100uH±5%TH1062 or equal
    Leakage Test12

    10KHz,0.3V

    (short connection to other PIN)

    ///TH1062 or equal
    Direct Current Resistance12DC 25℃110mΩ max110mΩ max110mΩ maxTH2511 or equal
    Turns Test12/26 (±0.2Ts)26 (±0.2Ts)26 (±0.2Ts)YG-108 or equal
    High-Voltage TestPin 1+2 CoreAC-50Hz-5mA500±10V,1~2 Sec600±10V,1~2 Sec500±10V,1~2 SecCJ2670 or equal


    Shenzhen Dowis Electronics Co., Ltd. is a professional manufacturer of electronic transformers, inductors, and filters integrating R&D, production, and sales. It is a national high-tech enterprise and has passed the IATF16949:2016 automotive industry quality management system certification, the product has passed the "UL""CQC" and other safety certifications. The products are widely used in communication equipment, new energy vehicles, industrial control equipment, high-power LED drives and other market areas. The industry has high visibility. In addition to the domestic market, but also exported to many countries in Europe and the United States.


    In order to further expand production capacity, it has set up a special test area construction area in zhaoqing YueGui cooperation in 2018 of 14000 square meters of manufacturing center named ZhaoQing Sheng Xiang electronic technology co., Ltd. Its management technical team has rich experience in cooperating with customers from well-known domestic enterprises and overseas. The design of products can fully follow customer’s needs and services with a good quality control system, and it has been recognized by many famous enterprises as the core suppliers. We look forward to cooperating with you.
