RM6 Shielded SMD Power Manufacture Customized DW3416

Product Description:

1. Various high power inductors are superior to be high saturation for surface mounting.
2. High heat resistance and excellent solderability.
3. Magnerically shielded construction.
4. Power supply for VCRs; OA equipment Digital camera, LCD television set notebook PC, portable communication equipments, DC/DC Convertors, etc.

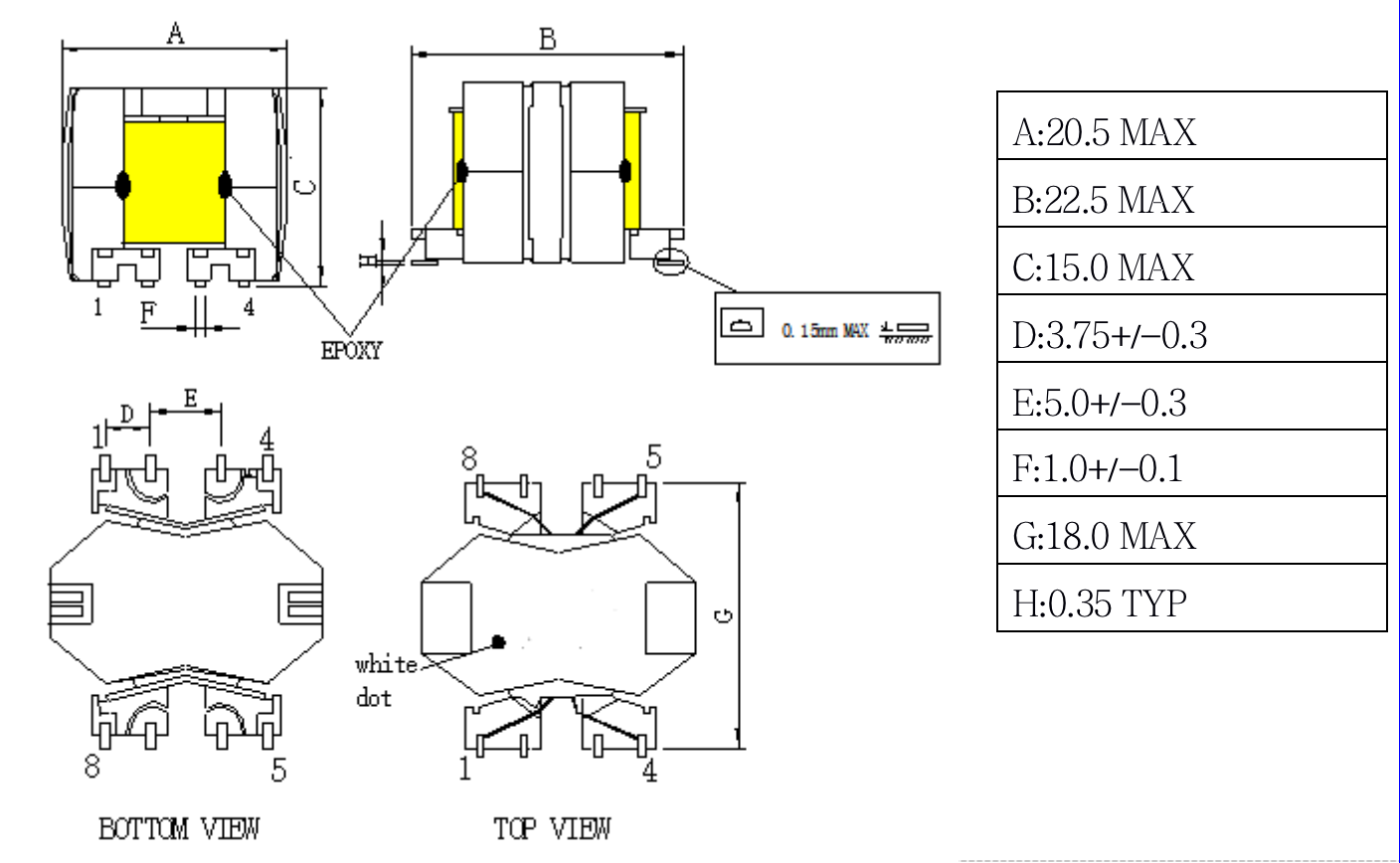

1. MECHANICAL DIMENSION (UNIT:MM)

2.WIDING CONSTRUCTION

3. PROCESS OF WINDING

Note:
1). If the PIN towards the operator side, the end wire is wound in the counterclockwise direction, that is, the BOBIN rotates in the clockwise direction.
2). Widing should be smooth and tight, and no crossover or knotting can occur. The end wire shall be bent into a right Angle shape and insulated across the wire. The thread must not spring back or loosen.
3). The start and end wires shall go out from the middle groove and hang the feet from the top, hanging on the second foot.

4. ELECTRICAL SPECIFICATION

1). Inductance Test: AT:10KHZ 0.1V

L(1-4):1.2mH-2.4mH

Lk(1-4):7-11uH MAX(short pin5,8)

L(8-5):1.2mH-2.4mH

Lk(8-5):7-11uH MAX(short pin1,4)

The inductance values above are standard or equivalent to HP-4284A.

2). The winding number phase test: AT: 20KHZ 5V

NP(1-4):45TS

N(8-5):45TS+/-0.2TS

The inductance values above are standard or equivalent to CH-310 METER.(Test with NO GAP)

3). Resistace Test: AT: 25℃

DCR(1-4):600mΩ MAX

DCR(8-5):600mΩ MAX

The inductance values above are standard or equivalent to CH-502B OHM METER.

4). HI-POT Test AC 60HZ Less than 1mA/1SEC

PRI TO SEC 1500V

PRI SEC TO CORE 500V

The inductance values above are standard or equivalent to VR-562.
