ERD41 Shielded SMD Power Manufacture Customized DW6184C
Features
Magnetic shielded structure: excellent resistance to electro
magnetic interference(EMI).
A composite structure, ultra low buzz noise.
Low loss, high efficiency, wide application frequency.
Lightweight design, save space, suitable for high density SMT.
Die-casting by low loss alloy powder: low impedance, small
parasitic capacitance.
Operating temperature : -40℃ ~ +125℃ (Including coil’s temperature
rise)
1. MECHANICAL DIMENSION (UNIT:MM)

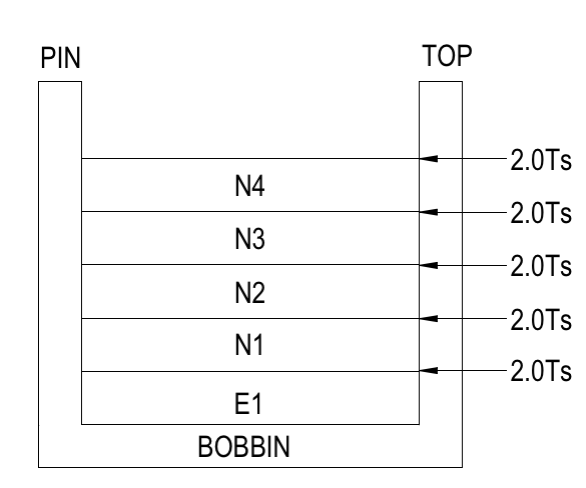

2.WIDING CONSTRUCTION
__
3. PROCESS OF WINDING
| Winding | Retaining Wall | Retaining Wall | Ts | Insulating Tape ( light yellow) | Tube | Method of entering Axle | Direction of entering Axle | ||||||
| Top | Pin | Start | End | Wire & Description | Winding Method | Tape Type | TS | Start | End | ||||
| E1 | / | / | 5 | / | 2UEW-F ∅ 0.25mm*1P | 12 | Tightly wind 1 layer | W4.0mm | 2Ts | 30LX15mm | / | ||
| N1 | / | / | 1 | 2 | 1UEW-F ∅ 0.30mm*1P | 16 | Tightly wind 2 layers | W4.0mm | 2Ts | 28LX15mm | 28LX15mm | ||
| N2 | / | / | 9 | 7 | TLW-F ∅ 0.60mm*1P | 4 | Tightly wind 2 layers | W4.0mm | 2Ts | 21LX15mm | 21LX15mm | Pin towards right | Front |
| N3 | / | / | 2 | 3 | 1UEW-F ∅ 0.30mm*1P | 8 | Tightly wind 1 layer | W4.0mm | 2Ts | 28LX15mm | 28LX15mm | ||
| N4 | / | / | 5 | 6 | 1UEW-F ∅ 0.30mm*1P | 6 | Tightly wind 1 layer | W4.0mm | 2Ts | 28LX10mm | 28LX10mm | ||
4. ELECTRICAL SPECIFICATION
| Item | Test Terminal | Test Condition | Standard Requirement | Standard Requirement | |||
| Semi-finished goods | Standard Requirement | Standard Requirement | |||||
| Inductance Test | 1 | 3 | 50KHz,0.1V | 765-835uH | 761-839uH | 800uH±5% | TH1062 or equal |
| Leakage Test | 1 | 3 | 50KHz,0.1V | 12uH MAX | 12uH MAX | 12uH MAX | TH1062 or equal |
| (Circus to other winding) | |||||||
| Direct Current Resistance | 1 | 2 | DC 25℃ | 410m Ω max | 410m Ω max | 410m Ω max | TH2511 or equal |
| 9 | 7 | 35m Ω max | 35m Ω max | 35m Ω max | |||
| 2 | 3 | 230m Ω max | 230m Ω max | 230m Ω max | |||
| 5 | 6 | 200m Ω max | 200m Ω max | 200m Ω max | |||
| Turns Test | All winding | 20KHz,1V | (1--3):(9-7):(5-6)=24:4:6(±0.3Ts) | CH3250 or equal | |||
| Circus Test | Pin3-5 | ||||||
| High-Voltage Insulation Test | Primary to Secondary | AC-50Hz-1mA | 4000V,3 Sec | 4300V,3 Sec | 4000V,60 Sec | CJ2670 or equal | |
| Primary to Core | 1750V,3 Sec | 2000V,3 Sec | 1750V,60 Sec | ||||
| Secondary-Core | 1750V,3 Sec | 2000V,3 Sec | 1750V,60 Sec | ||||
| Layer Isolation | Pin(1-3) | 50Hz | AC 1500 Pulse voltage | FT6815 or equal | |||
